|Material:||Aluminium-Titanium Alloy||Color:||Red, Silver, Blue, Black|
|Suitable Nut Size:||70-80mm||Origin:||China|

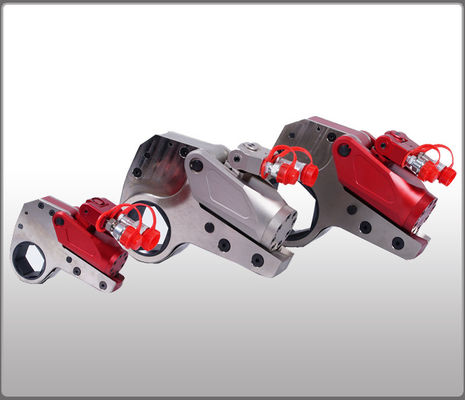

2PDCT / 241-2414N.m low profile hydraulic torque wrench for tightening or loosening industrial bolt
1. Hydraulic torque wrench, made of ultra-high strength aluminum-titanium alloy, thin design, double - acting, high speed and big corner;
2. clamping type, interchangeable plug - ins, no need of special tools, torque repetition accuracy as high as ±3%;
3, 360°×360° and 180°X360° rotary hose connectors, which are suitable for compact occasions and convenient for positioning.
4, wrench strength design is sufficient, the overall reaction arm, fewer movable parts, durable and reliable;
5. Can work with metric and imperial hexagonal insert socket, which can realize that one power head is equipped with multiple insert socket for simultaneous use;
6. Most of them are used in special working conditions: double nuts, bolts are too close to the equipment wall, bolts are too long, nut spacing is too small, etc.
7. If needed, can work with our back-up wrench, more convenient.
|SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH|
|POWER HEAD WEIGHT(KG)||0.9||0.9||1.7||1.7||3||3.1||4.6||6.5||10.4||10.4||35.5|
|WORKING HEAD WEIGHT(KG)||1.5||1.5||3.4||3.4||6.3||6.3||11.4||14.3||20.5||20.5||42|
hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulic. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.
Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3 %.
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
