Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool

China Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool supplier
Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool supplier Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool supplier Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool supplier Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool supplier

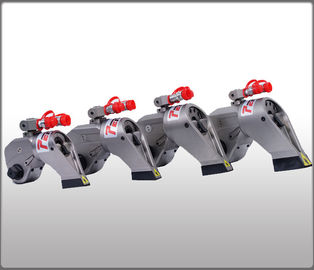

Large Image :  Steel Mills Hydraulic Square Drive Torque Wrench High Torque Hydraulic Wrench Tool

Product Details:

Place of Origin: China
Brand Name: PENAD
Certification: ISO, CE/TUV
Model Number: PDTA

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Carton
Delivery Time: 3-4 Working days
Supply Ability: 3000/SET/YEAR
Contact Now
Detailed Product Description
Material: Aliuminium-Titanium Alloy Color: Red, Silver, Blue, Black
OEM: Available Model: PDTA
Certificate: CE Torque: 451-4512N.m
Nut Size: 34-75mm

Hydraulic torque wrench manufacturer and supplier



Hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.



Application field:

Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition

accuracy reaches about ±3 %.

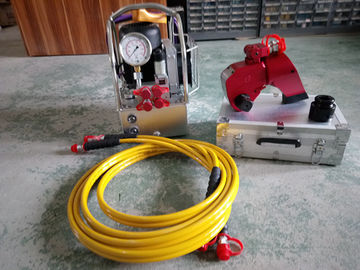

PDTA hydraulic torque wrench products imported from china







Products Drawings:

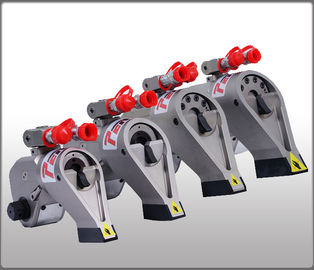

PDTA hydraulic torque wrench products imported from china



Selection Chart:



SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH
MODEL 07PDTA 1PDTA 3PDTA 5PDTA 8PDTA 10PDTA 15PDTA 20PDTA 25PDTA 35PDTA
TORQUE(N.m) 112-1120 183-1837 451-4512 752-7528 1078-10780 1551-15516 2062-20627 2666-26664 3572-34725 4866-48666
BOLT SIZE(M) 14-30 16-36 22-48 27-56 30-64 36-72 39-80 42-90 48-100 64-120
WEIGH(KGS) 1.8 2 4 7 9.1 13.1 18 25 31 45
L1(mm) 110.8 130 166 198 213 231 270 295 314 355
L2(mm) 139.3 182 241 281 308 336 400 443 464 489
H1(mm) 42 50 68 80 90 100 110 120 137 153
H2(mm) 65.8 72 95 123 130 141 179 182 200 217
H3(mm) 76.2 99 130 155 171 187 201 228 255 290
H4(mm) 108.1 144 176 198 216 230 244 268 295 330
R1(mm) 20.5 26 34 39 47 51 55 59 67 79
R2(mm) 68.3 99 134 152 171 174 195 250 251 271
SQUARE DRIVE 3/4" 3/4″ 1″ 1-1/2″ 1-1/2″ 1-1/2″ 2-1/2" 2-1/2″ 2-1/2″ 2-1/2″



Model choose tips:



The selection of hydraulic wrench is determined by bolt size, torque requirements and space range.

  1. Bolt size, firstly, need to confirm the specification of the bolt, metric or imperial, and the bolt size. If including many different size of nuts, we suggest choose different model of hydraulic torque wrench according to nuts size and torque force.
  2. The specification and strength grade of bolts are the most critical parameters of hydraulic torque wrench selection.
  3. Space position of bolts and nuts, if the space permitted, PDTA square drive hydraulic torque wrench and PDCT low profile hydraulic torque wrench are suitable, if the space is narrow, we suggest to adopt the PDCT series of wrench.
  4. 1 ) One model of hydraulic wrench can only solve several similar bolts, usually with 1 - 10 impact sockets;
    2 ) it is best for qualified manufacturers to use an electric pump with two wrench heads, and use it diagonally, which can improve efficiency and torque more accurately.
    3 ) hydraulic wrenches must be used by special personnel, kept by special personnel and often maintained, such as oil change and cleaning.
