Product Details:
Payment & Shipping Terms:
|
| Material: | Aliuminium-Titanium Alloy | Color: | Red, Silver, Blue, Black |
|---|---|---|---|
| OEM: | Available | Model: | 3PDTA |
| Torque Range: | 451-4512N.m | Nut Size: | 32-75mm |
| Bolt Diameter: | 22-48mm | Certificate: | CE |
| High Light: | hydraulic torque gun,loosening and tightening tools |
||

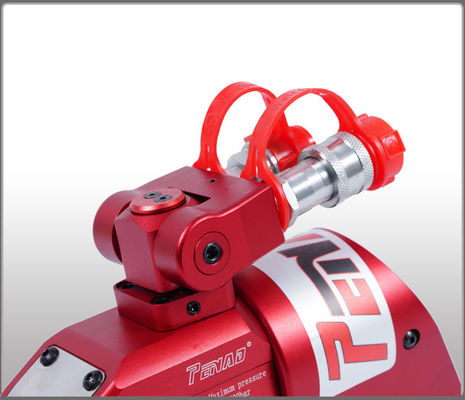

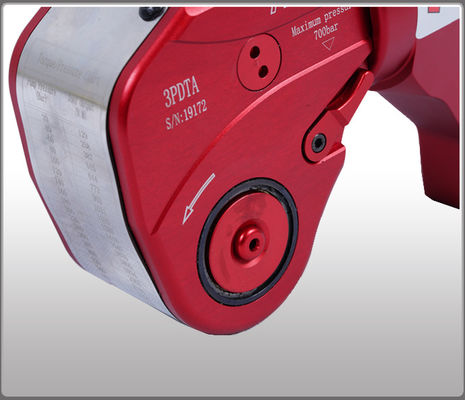

3PDTA square drive hydraulic torque wrench , 451-4542N.m with 1" square drive
Characters:
Products Drawings:
Technical Data:
| SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH | |||||||||||
| MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA | 35PDTA | 50PDTA |
| TORQUE(N.m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 | 4866-48666 | 7200-72000 |
| BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 |
| WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 | 45 | 87 |
| L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 | 355 | 400 |
| L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 | 489 | 516 |
| H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 |
| H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 | 217 | 223 |
| H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 | 290 | 291 |
| H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 | 330 | 341 |
| R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 | 79 | 81 |
| R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 | 259 |
| SQUARE DRIVE | 3/4" | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2-1/2" | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ |
Application field:
Our hydraulic torque wrenches are wildely used in mining , wind power plant , petroleum , chemical and many other field
FAQ:
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
2. Package
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
3. Warranty.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
