Payment & Shipping Terms:
|Material:||Aluminium-Titanium Alloy||Color:||Red, Silver, Blue, Black|
|Suitable Nut Size:||41-95mm||Origin:||China|
low clearance hydraulic torque wrench,
hydraulic bolting tools
BOP bolt solution , PDCT low profile hydraulic torque wrench

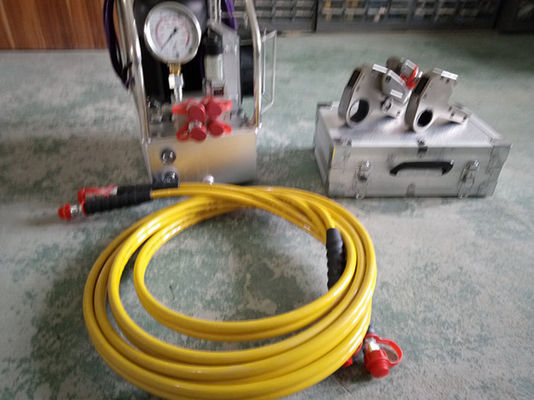

Hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.
1. Hydraulic torque wrench, made of ultra-high strength aluminum-titanium alloy, thin design, double - acting, high speed and big corner;
2. clamping type, interchangeable plug - ins, no need of special tools, torque repetition accuracy as high as ±3%;
3, 360°×360° and 180°X360° rotary hose connectors, which are suitable for compact occasions and convenient for positioning.
4, wrench strength design is sufficient, the overall reaction arm, fewer movable parts, durable and reliable;
5. Can work with metric and imperial hexagonal insert socket, which can realize that one power head is equipped with multiple insert socket for simultaneous use;
6. Most of them are used in special working conditions: double nuts, bolts are too close to the equipment wall, bolts are too long, nut spacing is too small, etc.
7. If needed, can work with our back-up wrench, more convenient.
|SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH|
|POWER HEAD WEIGHT(KG)||0.9||0.9||1.7||1.7||3||3.1||4.6||6.5||10.4||10.4||35.5|
|WORKING HEAD WEIGHT(KG)||1.5||1.5||3.4||3.4||6.3||6.3||11.4||14.3||20.5||20.5||42|
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
