Product Details:
Payment & Shipping Terms:
|
| Material: | Aliuminium-Titanium Alloy | Color: | Red, Silver, Blue, Black |
|---|---|---|---|
| OEM: | Available | Model: | 5PDTA |
| Torque Range: | 1551-15516N.m | Bolt Size: | 27-56mm |
| Certificate: | CE | ||
| High Light: | hydraulic torque gun,loosening and tightening tools |
||

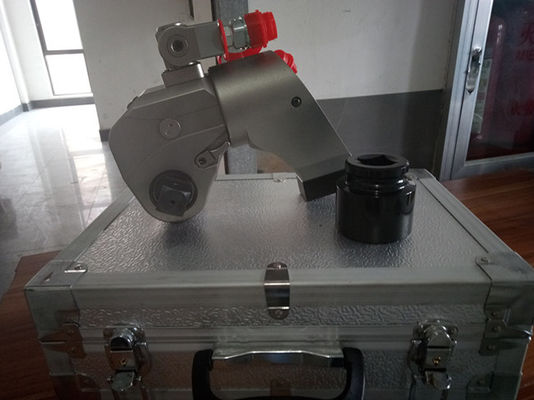

Whole set of 5PDTA square drive hydraulic torque wrench , torque752- 7528N.m
Hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.
Technical Data:
| SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH | |||||||||||
| MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA | 35PDTA | 50PDTA |
| TORQUE(N.m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 | 4866-48666 | 7200-72000 |
| BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 |
| WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 | 45 | 87 |
| L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 | 355 | 400 |
| L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 | 489 | 516 |
| H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 |
| H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 | 217 | 223 |
| H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 | 290 | 291 |
| H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 | 330 | 341 |
| R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 | 79 | 81 |
| R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 | 259 |
| SQUARE DRIVE | 3/4" | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2-1/2" | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ |
Characters:
Products Drawings:
FAQ:
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
2. Package
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
3. Warranty.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
Application field:
Our hydraulic torque wrenches are wildely used in mining , wind power plant , petroleum , chemical and many other field
