Home ProductsSquare Drive Hydraulic Torque Wrench

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket

I'm Online Chat Now
Certification
China Hangzhou Penad Machinery Co., Ltd. certification
China Hangzhou Penad Machinery Co., Ltd. certification
Michael, received the wrenches and tested, nice tools, cheers. will give you new order soon.

—— Ricky

my customer is satisfied with the wrenches very much. thank you.

—— Christine

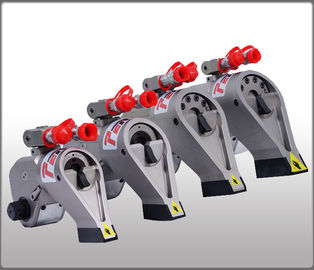

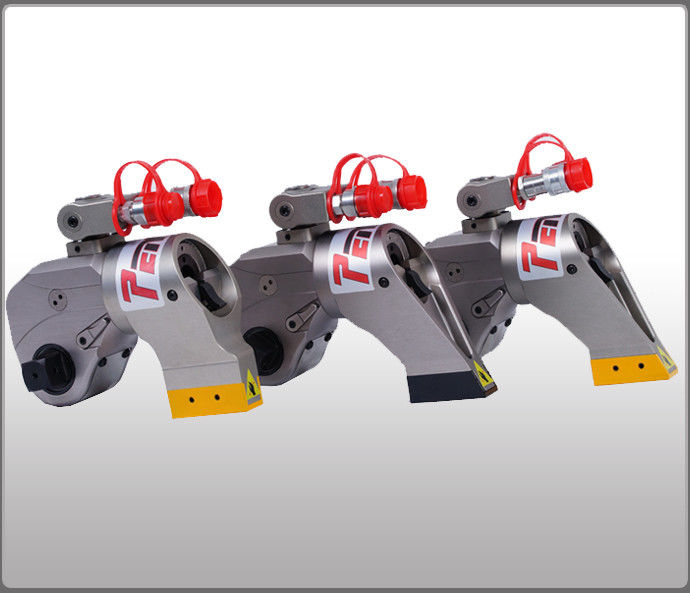

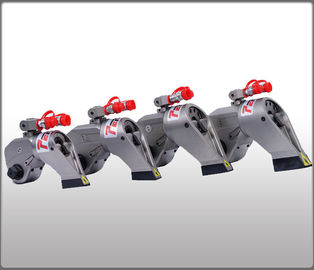

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket

Large Image :  Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket Get Best Price

Product Details:
Place of Origin: China
Brand Name: PENAD
Certification: ISO, CE/TUV
Model Number: PDTA
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD /1000-5000 /SET
Packaging Details: Carton
Delivery Time: 3-4 Working days
Supply Ability: 3000/SET/YEAR
Detailed Product Description
Material: Aliuminium-Titanium Alloy Color: Red, Silver, Blue, Black
Model: PDTA Torque: 183-48666
Certificate: CE OEM: Avallable
High Light:

hydraulic square drive torque wrench

,

hydraulic torque gun

Square drive hydraulic torque wrench manufacturer with CE authentication



Hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.





Characters:



1. Square hydraulic torque wrench, high quality with good performance, works with impact socket.

2. Precision Machined - Increases accuracy, durability and repeatability.

3. 360° Swivel Fittings (Patented) , it is very convenient during the operation.

4. Surface coated - All exposed parts to resist corrosion.

5. Calibrated - Every tool is function tested and calibrated to ±0.03 accuracy.

PDTA hydraulic torque wrench products imported from china







Products Drawings:



PDTA hydraulic torque wrench products imported from china

Technical Data:



SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH
MODEL 07PDTA 1PDTA 3PDTA 5PDTA 8PDTA 10PDTA 15PDTA 20PDTA 25PDTA 35PDTA 50PDTA
TORQUE(N.m) 112-1120 183-1837 451-4512 752-7528 1078-10780 1551-15516 2062-20627 2666-26664 3572-34725 4866-48666 7200-72000
BOLT SIZE(M) 14-30 16-36 22-48 27-56 30-64 36-72 39-80 42-90 48-100 64-120 72-125
WEIGH(KGS) 1.8 2 4 7 9.1 13.1 18 25 31 45 87
L1(mm) 110.8 130 166 198 213 231 270 295 314 355 400
L2(mm) 139.3 182 241 281 308 336 400 443 464 489 516
H1(mm) 42 50 68 80 90 100 110 120 137 153 160
H2(mm) 65.8 72 95 123 130 141 179 182 200 217 223
H3(mm) 76.2 99 130 155 171 187 201 228 255 290 291
H4(mm) 108.1 144 176 198 216 230 244 268 295 330 341
R1(mm) 20.5 26 34 39 47 51 55 59 67 79 81
R2(mm) 68.3 99 134 152 171 174 195 250 251 271 259
SQUARE DRIVE 3/4" 3/4″ 1″ 1-1/2″ 1-1/2″ 1-1/2″ 2-1/2" 2-1/2″ 2-1/2″ 2-1/2″ 2-1/2″





Application field:

Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3 %.



Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket 2
