Product Details:
Payment & Shipping Terms:
|
| Material: | Al-Ti Alloy | Model: | 35PDTA |
|---|---|---|---|
| Torque: | 4866-48666N.m | Color: | Red Or Silver |
| Nut Size: | 95-170mm | Origin: | China |
| High Light: | hydraulic torque gun,loosening and tightening tools |
||

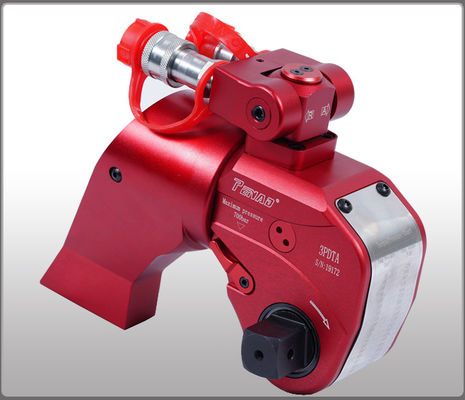

48666N.m Square drive hydraulic torque wrench
Hangzhou Penad Machinery Co.,ltd., specialized in hydraulic torque wrench and electric hydraulic pump manufacturing and sales for years, with advanced macnining equipment, richful experience, hydraulic engineers, our quality gain more and more customers confirmation from the worldwide.
Penad Square drive hydraulic torque wrench with such charactors:
1. The hydraulic torque wrench main body, made of high-tech aerospace materials and ultra-high strength aluminum-titanium alloy steel to integrally form the fuselage, thus comprehensively strengthening the strength and toughness of the fuselage;
2. The wrench coupling which can rotate 360°×360°, is convenient to operate without using space restrictions;
3. The trigger lock catch can be easily pressed, and the 360° fine-tuning reaction arm can be set on a solid fulcrum at will.
4. Large teeth ratchet wheel is adopted, and the accuracy is up to ±3%
Our wrench selection chart:
| SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH | ||||||||||
| MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA | 35PDTA |
| TORQUE(N.m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 | 4866-48666 |
| BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 |
| WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 | 45 |
| L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 | 355 |
| L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 | 489 |
| H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 |
| H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 | 217 |
| H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 | 290 |
| H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 | 330 |
| R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 | 79 |
| R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 |
| SQUARE DRIVE | 3/4" | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2-1/2" | 2-1/2″ | 2-1/2″ | 2-1/2″ |
About us and our service:
Hangzhou Penad machinery co.,ltd. specialized in hydraulic tools manufacturing and marketing, our main products including PDTA series of square drive hydraulic torque wrench, PDCT series of low profile hydraulic torque wrench, PE200 series of electric hydraulic pump, PE200Q sereis of penumatic hydraulic pump, sorts of cylinder, HTS series of hydraulic bolt tensioner. we provide useful bolt solution.
FAQ:
Q: Can you do OEM?
A: Yes, we can.
Q: How about the MOQ?
A: 1set
Q: How about the delivery time?
A: Normally, 2-3 workings days. But it depends on your order quantity.
Q: How about the warranty?
A: 1 year.
Q: What certificate do your product have?
A: We have CE, ISO 9001:2000
Q: Where is your loading port?
A: Ningbo or Shanghai , China port.
Q: Are you a manufactuer or trading company?
A: We are a manufacturer specialize in hydraulic tools for more than 10 years.
Application:
